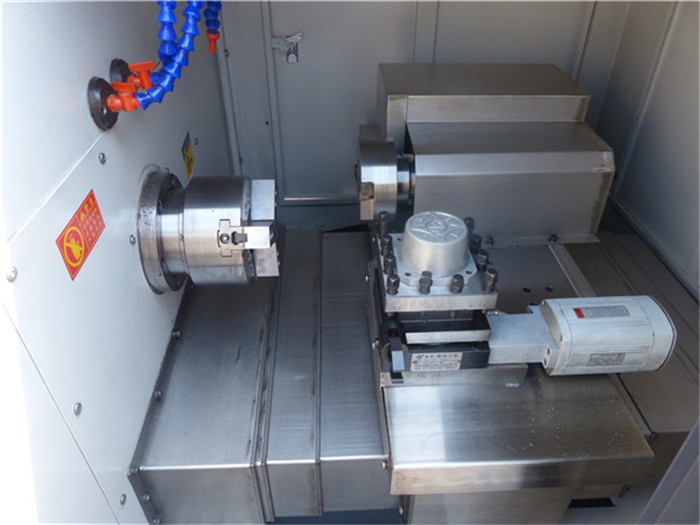

詳細介紹CXF-W40數控多邊形車六角車床
CXF-W40數控多邊形車六角車床（線軌）是龍口市藍牙數控裝備有限公司的一款產品。主要用于六邊形、四方、長方、扁方等多邊形零件的精加工；也可半精加工三角形、五邊形等零件。它同時具備數控車床的全部功能，一次裝夾可完成多邊形和回轉體的加工要求。該設備大幅提升生產效率，提高加工精度，節約人力資源。是汽車、機械、五金、輕工等制造行業理想的加工設備。
機床標準配置及特點：
* 數控系統選用西門子808D/臺灣新代/葦杭系統，帶USB接口，功能強大，穩定可靠；
* 進給軸采用伺服電機控制，定位精度高；
* 米漢納鑄鐵經過時效處理，品質高、變形小；
* 主軸和臥銑刀盤采用伺服電機，確保轉速比的精確控制；
* 高精度滾珠絲杠和直線導軌，動態性能良好，精度高；
* 集中自動潤滑系統，潤滑可靠；
* 配置冷卻泵，為加工提供強制冷卻；
* 四工位電動刀架，快速轉位；
* 外觀全封閉式防護，操作方便，防水性好。
機床選裝配置或定制機床（價格另計）：
* 自動上料架
* 六工位刀塔/排刀
* 氣動或液壓卡盤
* 氣動或液壓尾座頂尖
* 多功能組合機床
Purpose of Machine Tool:
CXF-W40 CNC Polygon cutting and turning machine（Bluetooth CNC）is one of our patents for invention. It is mainly used for finish machining polygonal work pieces such as hexagon and tetragonum etc. It can also process spare parts like triangle, pentagon shapes etc. The Machine has all functions of CNC turning Machine. It improves the production efficiency, machining accuracy and saving the cost of human resources. The Machine is the ideal processing equipment for automobile, mechanic, hardware, light and other manufacturing industries.
Standard Configuration & Main Features:
* Siemens 808D as standard CNC system which has USB port.
* Meehanite cast iron after aging treatment with high quality and less deformation.
* Spindle and cutter driven by servo motor to ensure accurate ratio of rotating speed.
* Precision ball screws ensure dynamic performance well and positioning accurately.
* Feeding axles are driven by servo motors.
* Integrated automatic lubrication system makes the maintenance more reliable.
* Configuration powerful cooling pump.
* 4-position electric turret locates quickly.
* Full-enclosed shield.
Optional Accessories (Extra Price):
* Control systems such as FANUC，Siemens，GSK or KND is available for your selection.
* Pneumatic or hydraulic chuck is available.
* Pneumatic or hydraulic tailstock is available.
